HW-2002 Portable corona treater for Printing, blowing, extruding, labeling, laminating Machines
Main Characteristics
1. It adopts a high voltage fast-switching power transistor for inventing circuits.
2. High efficiency, high operating frequency. (8-25KHz)
3. Power output is continuously adjustable.
4. Electronic protection and low-speed automatic off.
5. Server in the film production, printing, gelatinizing, and complex unit.
6. Uniform treatment throughout the web width.
Technical Specification
Item | HW2002 |
Power supply | AC220V±10%/-15% |
Mains frequency | 50 Hz ± 5 % |
Line speed | 50-100m/min |
Output frequency | 8-25 Khz |
Max. output power | 2 KW |
Corona output | a. Constant at same speed b. No influence of supply voltage |
Dynes level | 42-56Dynes/cm |
Treated side | Singel side or Double side |
The max treated width | 1000mm |
Treated material | PP, PE, PS, etc plastic film, Metal film |
Packing size(Carton) | 53*34*26CM 14KG |
Environment temperature | -10°C ~ +40°C |
Environment humidity | 20%~93% no condensation |
Application | Film blowing machine, printing machine, laminating machine etc |
Corona treatment station | Available to customer's requirements |
Optional value-added features
1. Pneumatic operated treater station
2. Zero speed switch to protect silicon sleeve
3. Ozone extraction system efficiently remove ozone and cool the electrode
4. Steel corona station with painting anti-rust

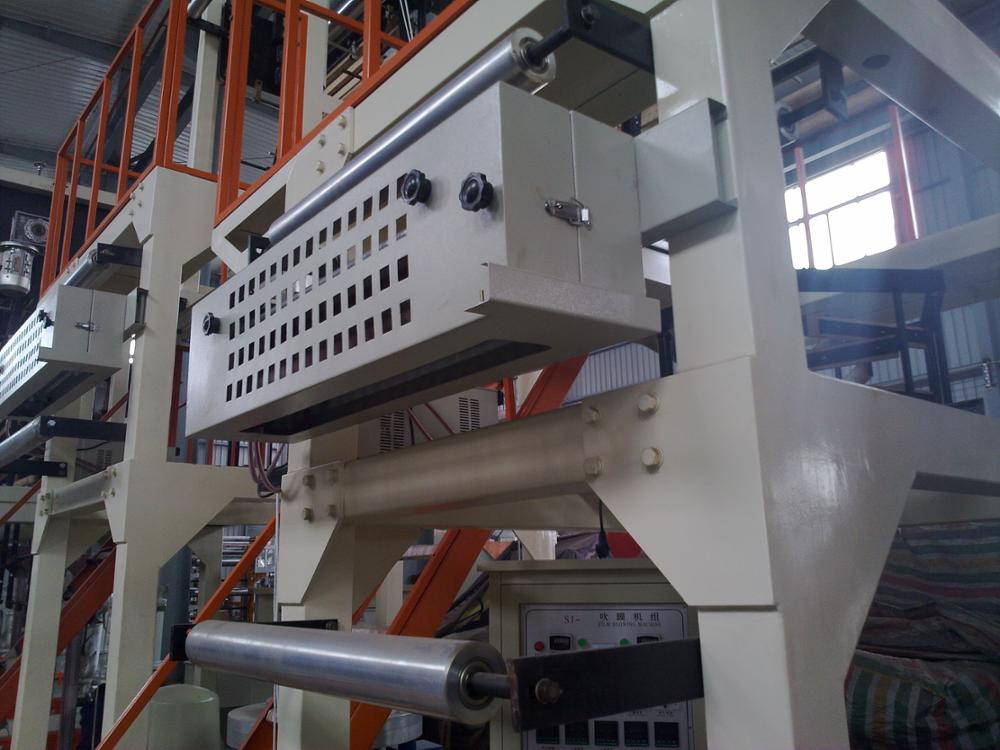

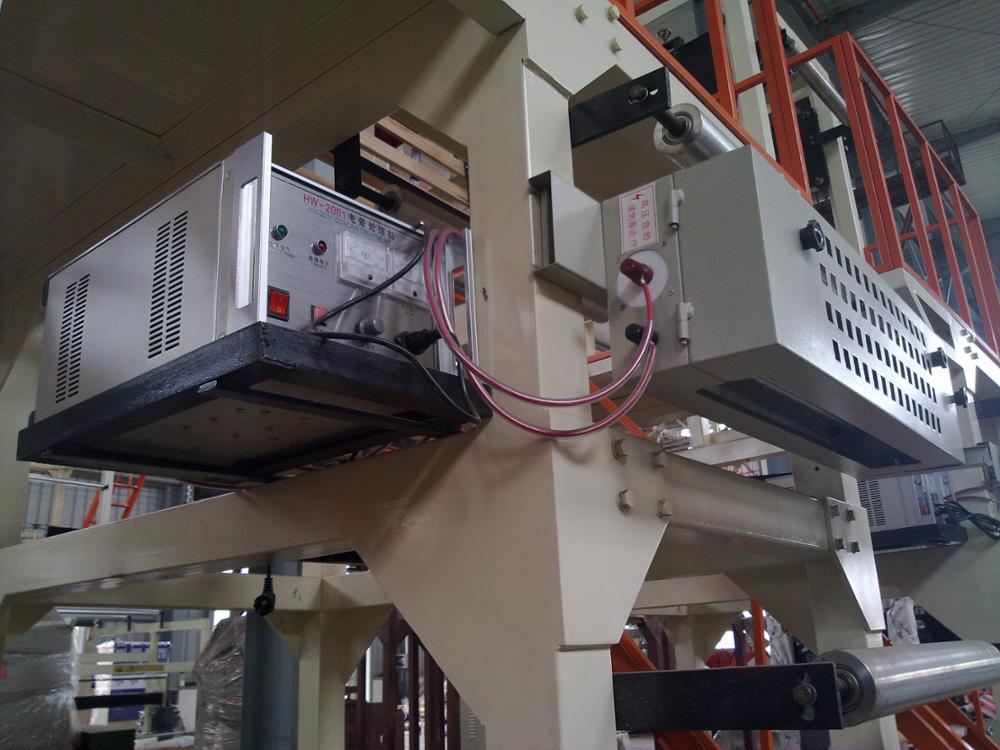

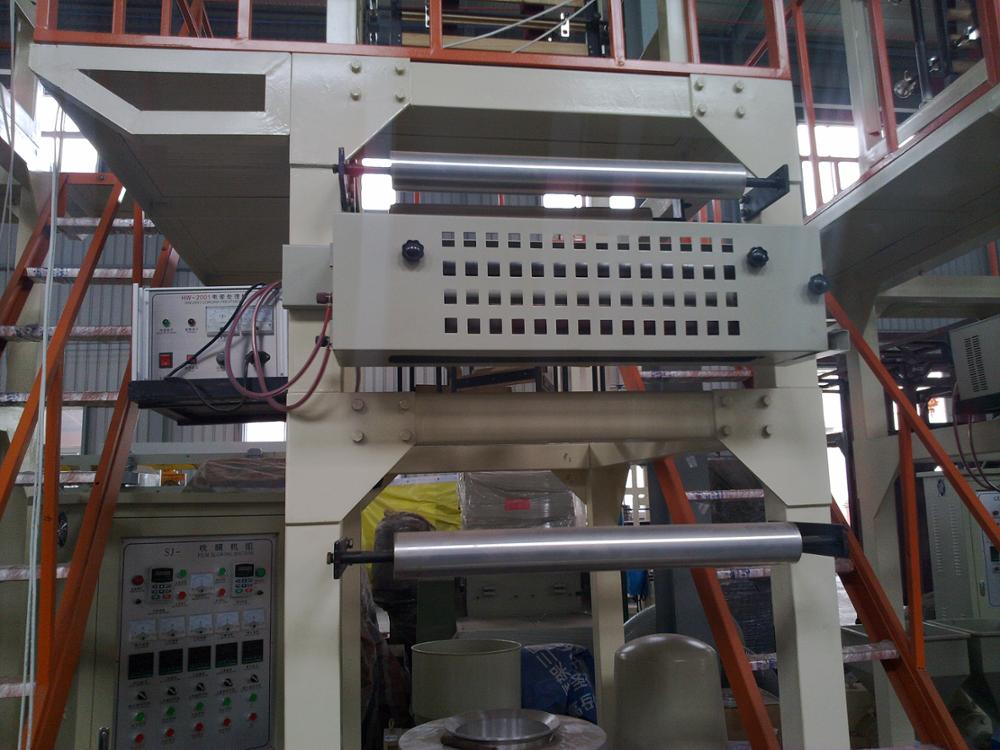

Application cases of our customers (HW2001+old type SF frame)
