HW-BZ handheld plasma treater for plastic paper ceramic cup tube cask corona treatment
>= 1 Set(s)
US $1,750.00
Top Selling
- OVERVIEW
- SPECIFICATIONS
- OTHER
Plastic Cup Tube Cask Corona Treatment/Plastic Tube corona machine
Features of corona generator:
1. It adopts a high voltage fast-switching power transistor as a power conversion device
2. High efficiency, high operating frequency.
3. Power output is continuously adjustable.
4. Electronic protection and low-speed automatic off.
5. Server in cup/cube/pipe/cask production, printing, gelatinizing, and complex units.
6. Uniform and efficient treatment
7. The nozzle could be customized (OEM & ODM supported)
Technical Specification for Standard HW cup corona treater:
| Item | HW-BZ01 | HW-BZ02 |
| Input voltage | 1-phase 220V(±10%) , 50Hz | |
| Input current | 4A (max.) | 8A (max.) |
| Electrode voltage | 10KV (max.) | |
| Output power | 0--2KW adjust | 0--3KW adjust |
| Line speed (max.) | 500pcs/min | |
| Output cable length | 2 m | |
| Environment requires | Temperature -10℃ -- +55℃ Humidity 20% -- 93% no-condensation | |
| Size (Length×Width×High) | Control box:54*34*26CM | Control box:35×32×20CM |
| Transformer:35×32×20CM | ||
| Weight | 15Kg | 17Kg |

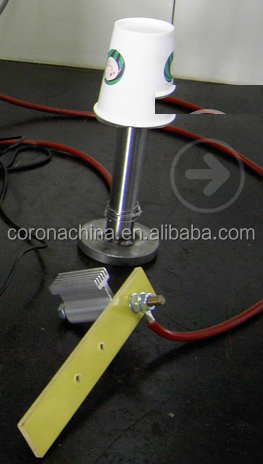

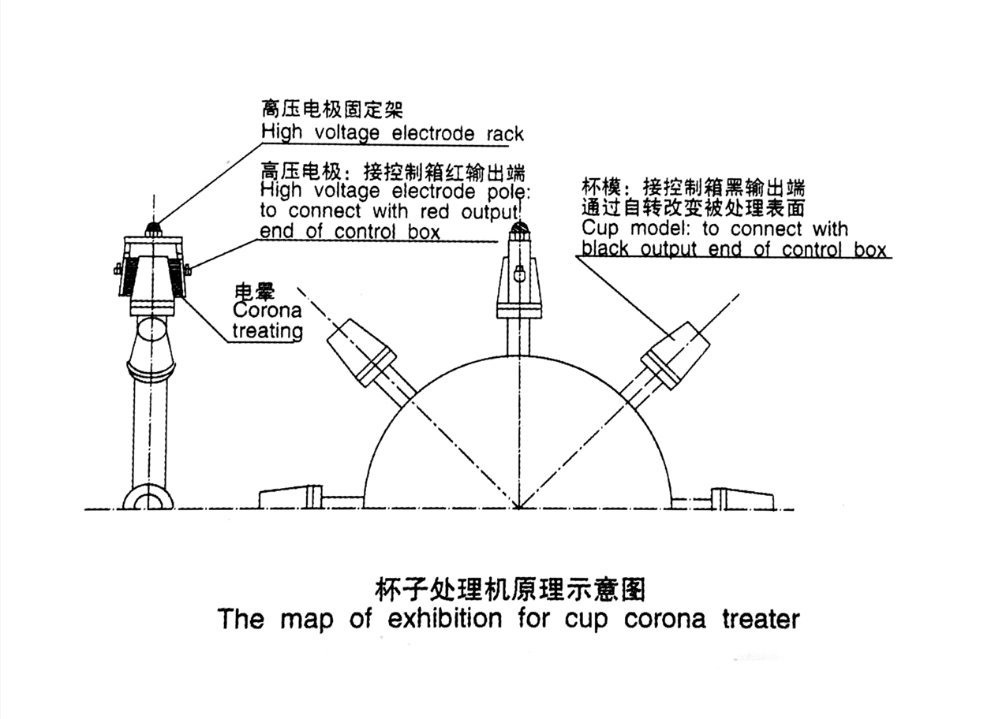

Here are some examples of nozzles for cup corona treater

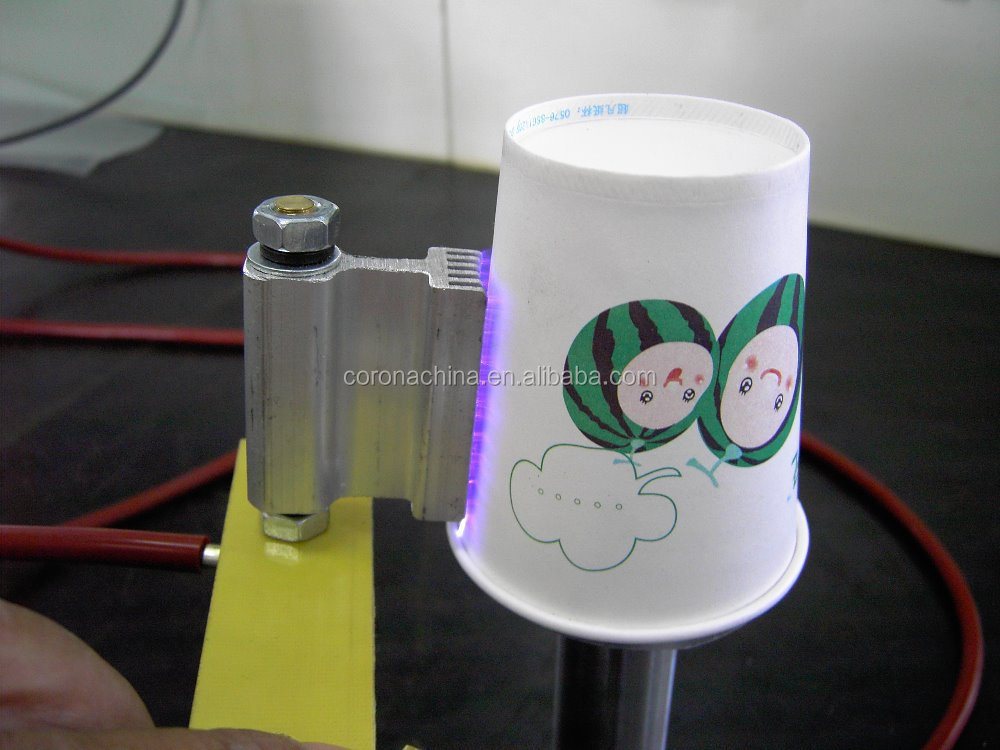

The standard 2 teeth aluminum electrode double nozzles
The customized mini single nozzle
The 6 teeth aluminum electrode single nozzle
Applications:
Surface treatment of materials with low surface energy is necessary before gluing, printing, painting, and coating.
1. Plastic cup pipe
2. Plastic cup
3. Plastic plastic drum
4. Hollow cylinder
Please contact us for more machine technical details and proposal.
