HW-PT-X50 plasma treater for PE bag film blowing machine printing machine corona treatment

HW-PT Series

Main Characteristics:
1. The installation of the device is simple, the gas source and power supply can be connected to work without any adjustment.
2. Single unit can match multiple or more units to support continuous work.
3. Built-in over-current, over-temperature, over-pressure, independently set the safety door to ensure safe use.
4. Adopt an SMC pneumatic switch, the digital display controls the air pressure size.
5. The fastest processing speed can reach 400M/Min.
6. LED displays the whole machine's working status, easy to understand.
7. Continuous/discontinuous switching switches are set to facilitate different control methods.

Input Voltage: AC220V ±10%
Output Voltage: 15kV
Output Power: 1 KVA
Working Frequency: 20-25 kHz
Compressed Air: 0.1m 0.2MP (Keep clean and dry)
Adapter Nozzles: 1-2 units Direct-injection or 1-2 units Rotatory nozzles
Weight: 20kg
Size: 22.5*53*43CM

Nozzle choices:

X10 Direct Injection Plasma Nozzle
Size: 224 *OD32 (Excluding Cable)
Cable Hose Length: 2.5m
Weight: 1 kg
Processing Width: 8-12mm

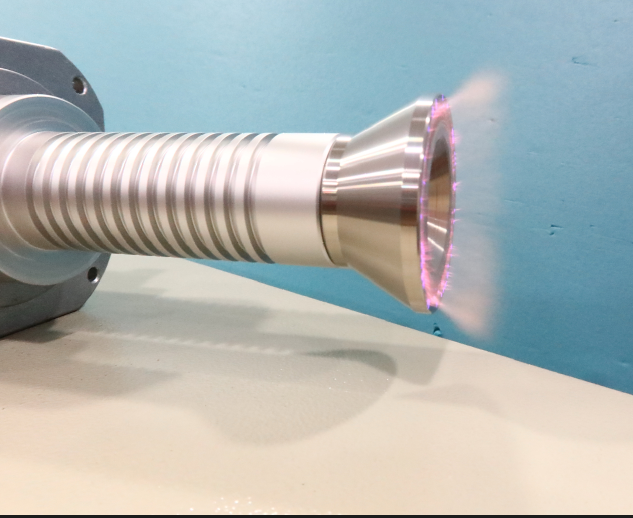

X50 Rotatory Plasma Nozzle
Size: 94 *94*310mm (Excluding Cable)
Cable Hose Length: 2.5m
Weight: 3kg
Processing Width: 30mm-40mm

HX35 Flat and Wide Processing Nozzle
Application: Non-conductive Materials
Size: 38*64 *168mm (Excluding Cable)
Cable Hose Length: 2.5m
Weight : 1 kg
Processing Width: 25mm-50mm

Don't hesitate to contact us for more machine technical details and proposals.
