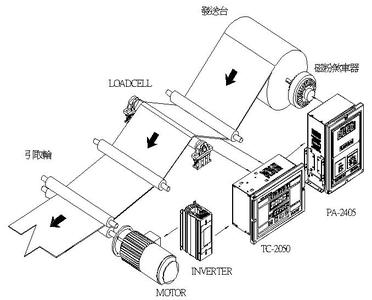

HW-TB series high precision automatic constant tension controller mainly consists of a tension detector, high precision A/D, D/A converter high-performance MCU, etc. The working principle is that the tension detector measures the tension of coil material and then compared with the setting stress, it is computed by MCU and adjusts the output D/A automatically, thus realizing the constant stress of the coil material by changing the excitation current of magnetic powder clutch & brake or torque of the servo motor. It is widely in the industry which needs to measure and control the tension precisely.
Features
1. English or Chinese Optional by LCD
2. Manual or Auto operation optional, easy operation
3. Adopt high-performance switch power technology, which has the advantages of small volume, convenient application, and easy installation
4. The simple wiring of the tension detector
5. Setting data conveniently
6. With double shaft output function
7. Tension resolution up to 1 Newton
8. Easy to manage multi-machine by Modbus protocol

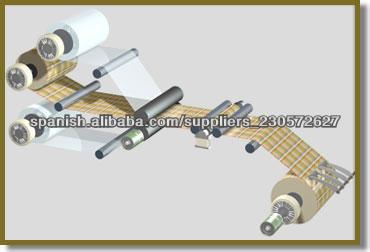

9. Suitable for printing machines, mechanical equipment, cutting machines, coating machines, laminating machines, winding machines, and so on.
Technical Parameters
Measurement precision: | ±1 Newton |
Sampling rate: | 100 millisecond |
Main output mode: | 30V/0-2A output, connected with magnetic powder clutch or brake |
The auxiliary output: | 1 Road DC 0-5V Analog signal output |
Communication function: | RS-485 Simultaneous use of the multi-tension controller |
Panel size: | 245×155×140(mm)(W×H×D) |
Installation size: | 230×150×120(mm)(W×h×D) |
Power supply: | 180 to 240V AC 50/60Hz |
