HW-2002E corona treatment surface plasma corona for PP PET CPP HDEP LDPE film blowing machine
>= 1 Set(s)
US $450.00 ~ 500.00
Top Selling
- OVERVIEW
- SPECIFICATIONS
- OTHER
Corona Treatment for extruded film or printing/bag-making machines
Features of corona generator:
1. High operating frequency with high efficiency to save costs.
2. Power output is continuously adjustable.
3. The digital display shows the operating parameters and is easy to control.
4. Uniform sparks with excellent treatment effects.
5. Built-in over-temperature, over-current, high-voltage short-circuit/open-circuit/fire-our/ground wire disconnect protections.
6. Server in film production, printing, gelatinizing, and complex units.
7. Sensor interface can be configured to realize stop and open protections of matched stations.
Technical Specification:
Item | HW2002E | |
Power supply | AC2200V±10%/-15% | |
Mains frequency | 50 Hz ± 5 % | |
Line speed | 80-120m/min | |
Output frequency | 8-25 Khz | |
Max. output power | 2KW | |
Corona output | a. Constant at the same speed b. No influence of supply voltage | |
Dynes level | 38-44Dynes/cm | |
Treated side | Singel side or Double side | |
The max treated width | 1200mm | |
Treated material | PP, PE, PS, etc plastic film, Metal film | |
Packing size(Carton) | 54*34*26CM 14KG | |
Environment temperature | -10°C ~ +40°C | |
Environment humidity | 20%~93% no condensation | |

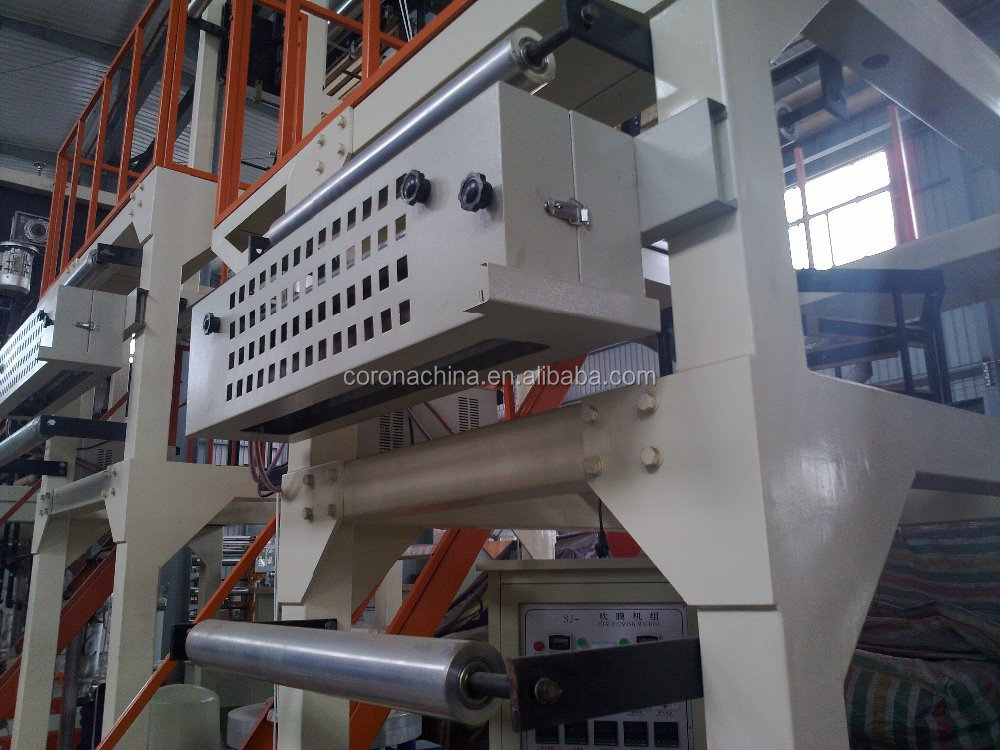

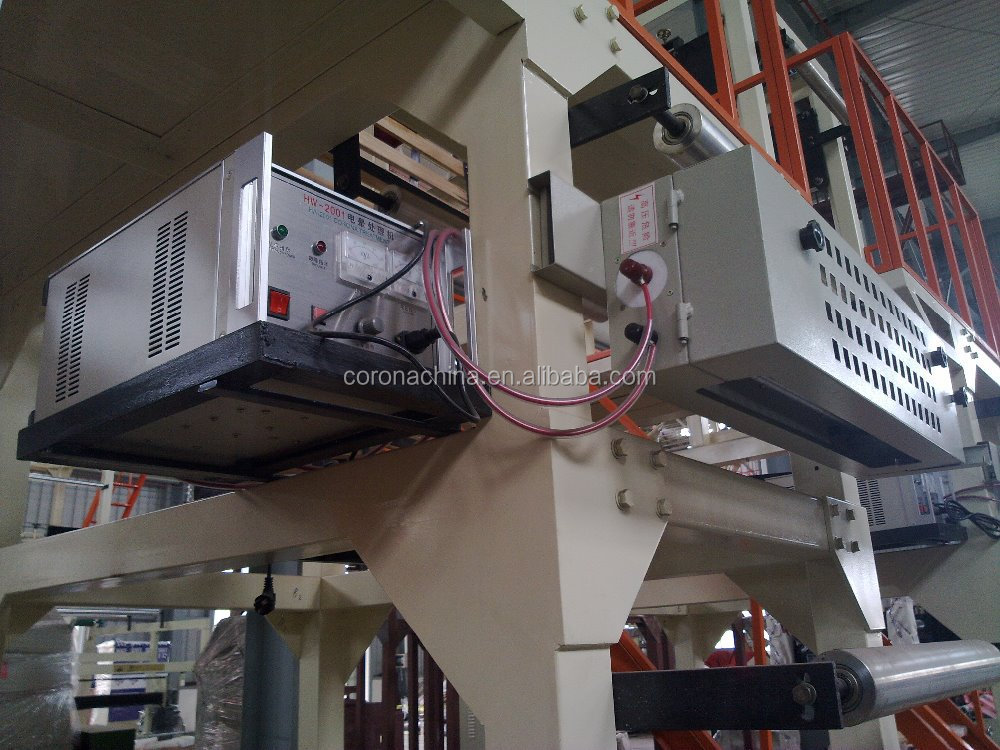

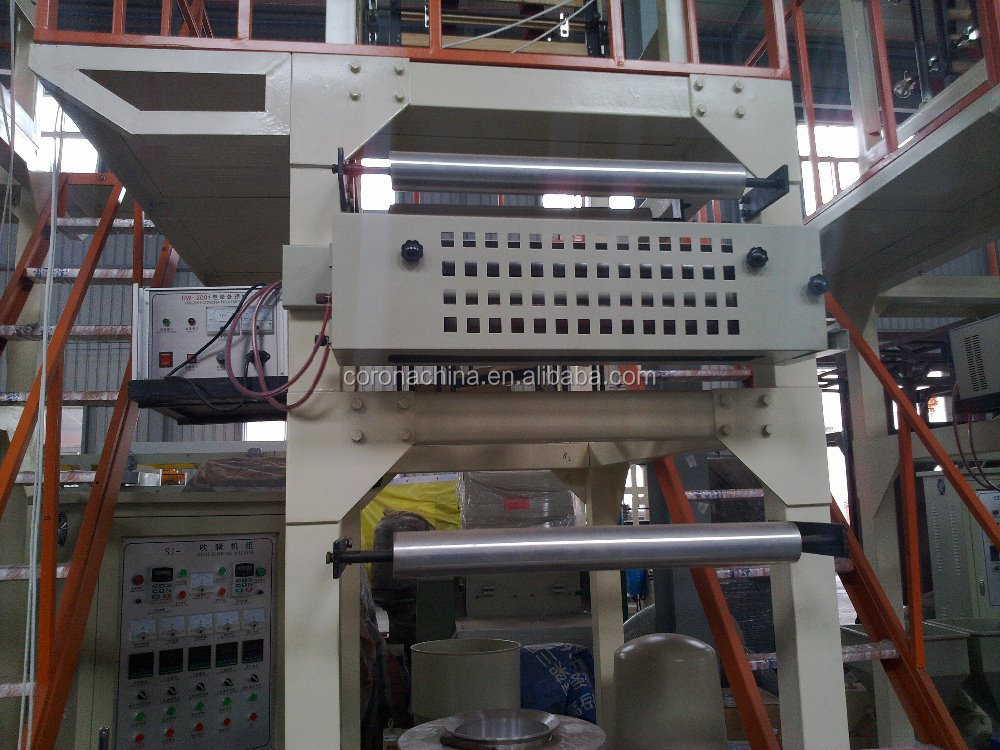

Application | Film blowing, printing, laminating, labeling, extruding machines, etc | |

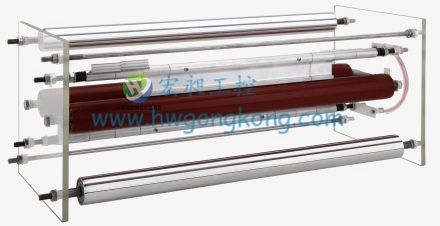

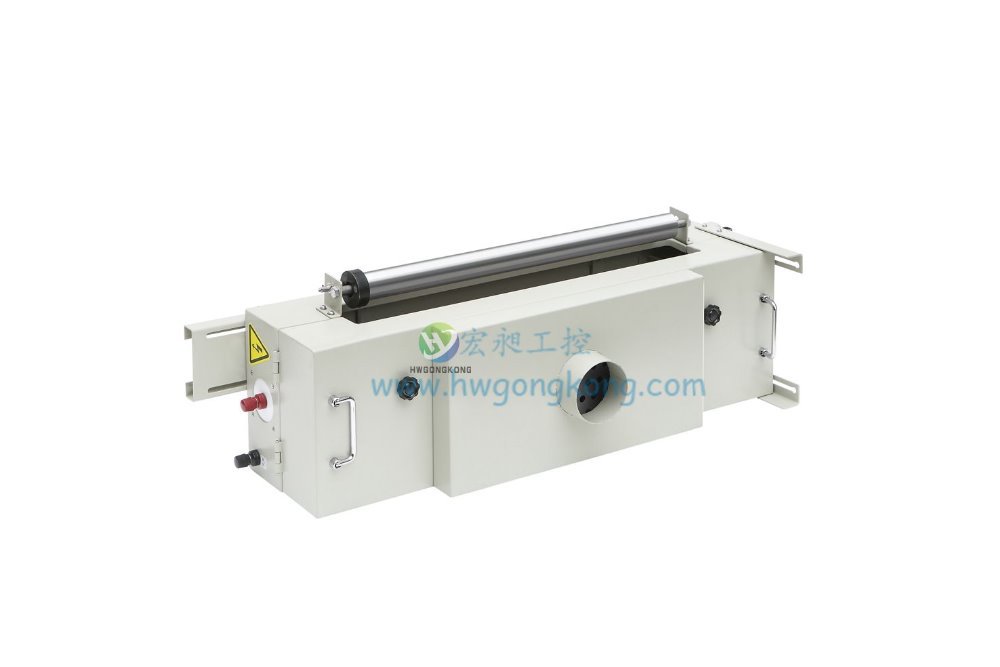

Corona treatment station | Available to customer's requirements | |
Benefits:
1. Easy to install and use with the digital display screen
2. Output discharge control
3. Compact design, lightweight and portable (with belt)
4. Low level of maintenance required
5. User-friendly with maximum operator safety
Optional value-added features for matched station/frame sets:
1. Pneumatic operated treater station.
2. Zero-speed switch to protect silicone sleeves.
3. Ozone extraction system efficiently remove ozone and cool the electrode.

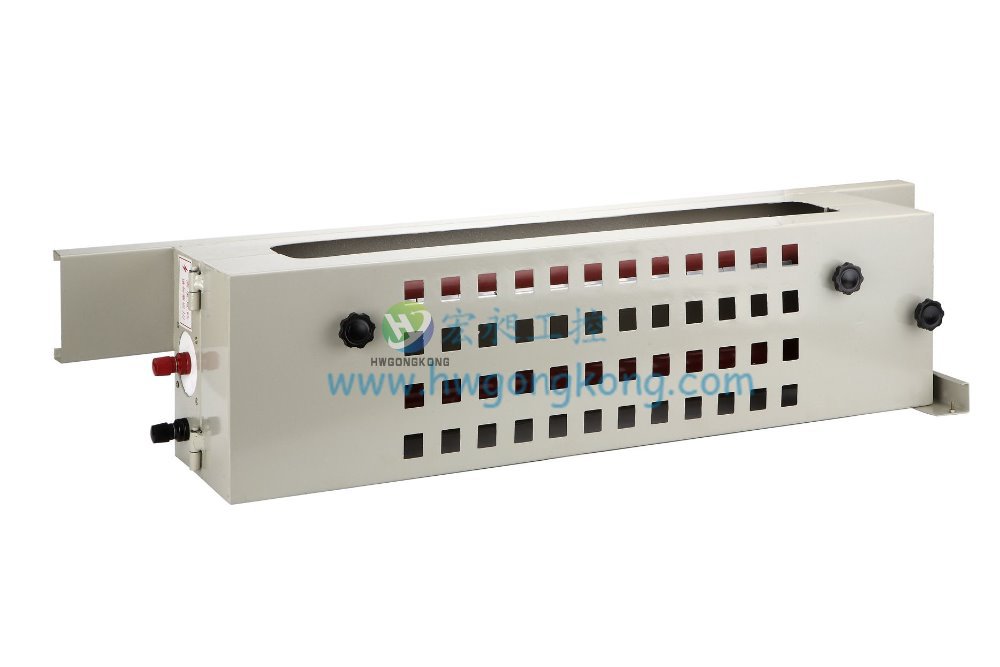

4. Steel corona station/frame with anti-rust coating.
